- Miters 0°-60° left and right, with positive stops at 0°, 15°, 22.5°, 31.6°, 45° and 60° (left and right)
- 40Vmax XGT Li-Ion battery enables LS003G to produce high output power

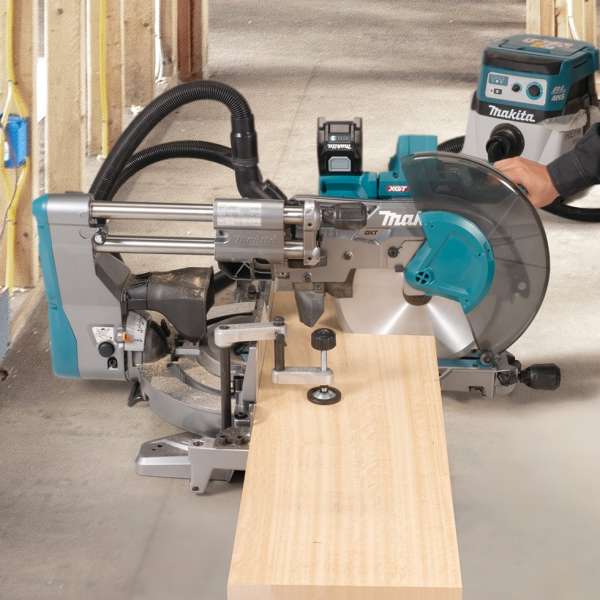

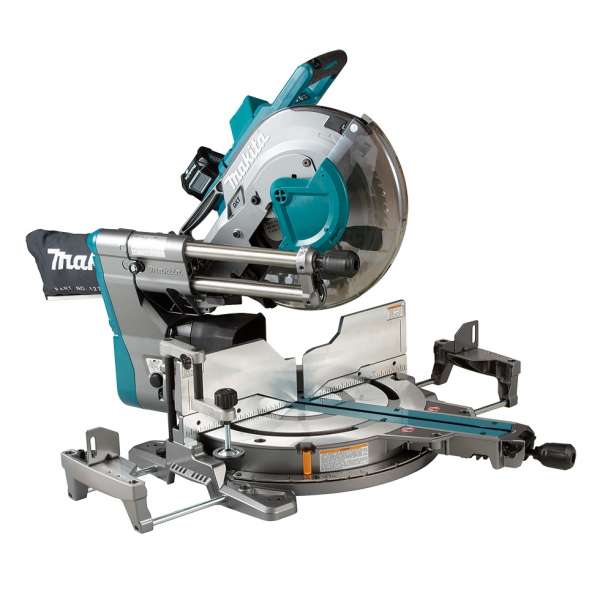

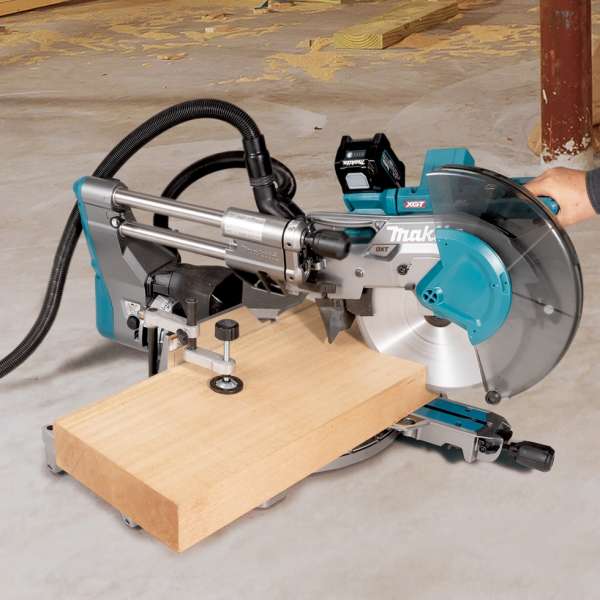

Cordless Slide Compound Miter Saw
LS003G 305 mm (12")
40V
8.0
5.0
4.0
2.5
2.0
Wheel diameter
305 mm (12")
No load speed (rpm)
3,600
Kerf thickness
3.2 mm or thinner (1/8" or thinner)
Bevel angle
Left: 48 ° Right: 48 °
Miter angle
Left: 60 ° Right: 60 °
Max cutting capacity
[ Crown molding ]
Upright cutting: 203 mm (8")
Horizontal cutting: 320 mm (12-5/8")
[ Baseboard (Skirt board) ]
Upright cutting: 171 mm (6-3/4")
Horizontal cutting, w/ auxiliary wood on Base: 416 mm (16-3/8")
Max output
1,500 W
Dimensions (L x W x H)
898 x 690 x 725 mm
(35-1/4" x 27-1/4" x 28-1/2")
Net weight (include battery)
30.5 - 31.7 kg
(67.2 - 69.9 lbs.)
(Using BL4020 - BL4080F Battery)
Features
Standard Accessories
- TCT saw blade, Vertical vise, Socket wrench, Triangular rule, Dust bag, Holder set
- LS003GZ: Fast charger, Battery cartridge, Plastic case and Wireless unit not included
