- Compact design with a short overall length of 170 mm
- Electronic 4 stage impact power selection for added versatility

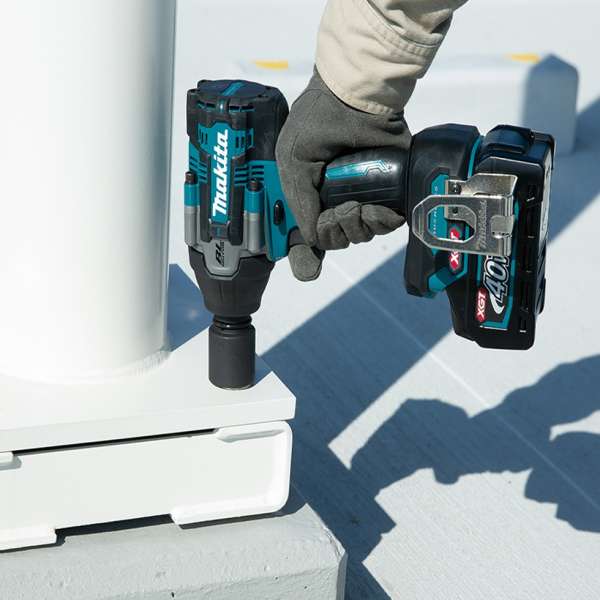

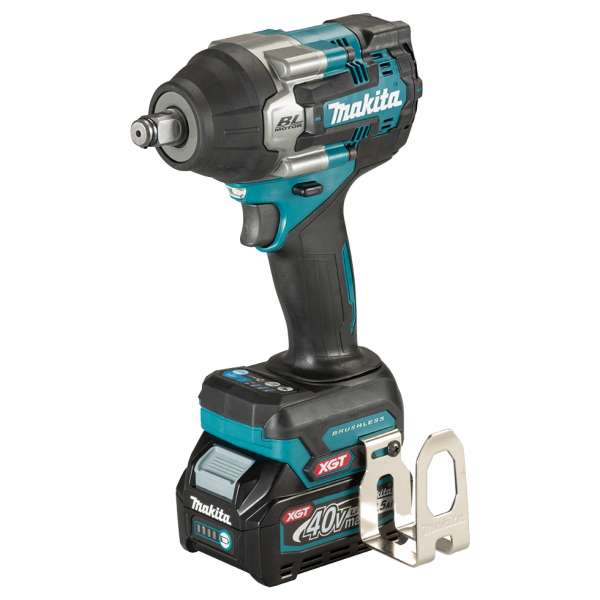

Cordless Impact Wrench
TW007GM201 / TW007GZ 12.7mm (1/2")
40V
8.0
5.0
4.0
2.5
Capacity
Standard Bolt: M10 - M24 (3/8 - 1")
High Strength Bolt: M10 - M16 (3/8 - 5/8")
Square Drive: 12.7 mm (1/2")
Impacts per minute (ipm)
Max: 2,900
Hard: 2,700
Mid : 1,900
Soft: 1,200
No load speed (rpm)
Max: 2,300
Hard: 1,900
Mid : 1,200
Soft: 600
Max. Fastening Torque
760 N·m (6,770 in.lbs.)
Nut-Busting Torque
1,100 N·m (9,720 in.lbs.)
Dimensions (LxWxH)
170 x 86 x 234 mm
(6-11/16'' x 3-3/8'' x 9-1/4")
Net weight
3.3 kg (7.3 lbs.)
Features
Standard Accessories
- Socket not included
- TW007GM201: Fast Charger(DC40RA)．4.0Ah Battery Cartridge (2pcs)
- TW007GZ: Fast charger, Battery Cartridge and Plastic Case not included
